python可視化 matplotlib畫圖使用colorbar工具自定義顏色

瀏覽:3日期:2022-07-03 08:13:14

python matplotlib畫圖使用colorbar工具自定義顏色 colorbar(draw colorbar without any mapple/plot)

自定義colorbar可以畫出任何自己想要的colorbar,自由自在、不受約束,不依賴于任何已有的圖(plot/mappable)。這里使用的是mpl.colorbar.ColorbarBase類,而colorbar類必須依賴于已有的圖。

參數可以參考下面的描述->matplotlib:

class matplotlib.colorbar.ColorbarBase(ax, cmap=None, norm=None, alpha=None, values=None, boundaries=None, orientation=‘vertical’, ticklocation=‘a(chǎn)uto’, extend=‘neither’, spacing=‘uniform’, ticks=None, format=None, drawedges=False, filled=True, extendfrac=None, extendrect=False, label=’’)[source]

參數簡單描述

ax :可用于設置colorbar的位置、長、寬 norm :用于規范化?設置顏色條最大最小值 cmap:顏色(可參考本篇博文的最后部分——推薦色帶與自定義色帶) boundaries:要想使用extend,在norm之外,必須要有兩個額外的boundaries orientation:colorbar方向,躺平or垂直 extend:延伸方向(在norm之外colorbar可延伸) ticks:自定義各段的tick(記號)給一個例子,首先定義一下橫縱坐標的名稱,以及df_int:

給一個例子,首先定義一下橫縱坐標的名稱,以及df_int:

labels_int = [’A’, ’B’, ’C’, ’D’]variables_int = [’A’, ’B’, ’C’, ’D’]# x_normed_int 可以是一個4*4的數組,經過歸一化的df_int = pd.DataFrame(, columns=variables_int, index=labels_int)

接下來就是畫圖了:

fig = plt.figure() ax = fig.add_subplot(111) cax = ax.matshow(df, interpolation=’nearest’, cmap=’GnBu’) fig.colorbar(cax) tick_spacing = 1 ax.xaxis.set_major_locator(ticker.MultipleLocator(tick_spacing)) ax.yaxis.set_major_locator(ticker.MultipleLocator(tick_spacing)) ax.set_xticklabels([’’] + list(df.columns)) ax.set_yticklabels([’’] + list(df.index)) plt.show()

其中:

cax = ax.matshow(df, interpolation=’nearest’, cmap=’GnBu’)

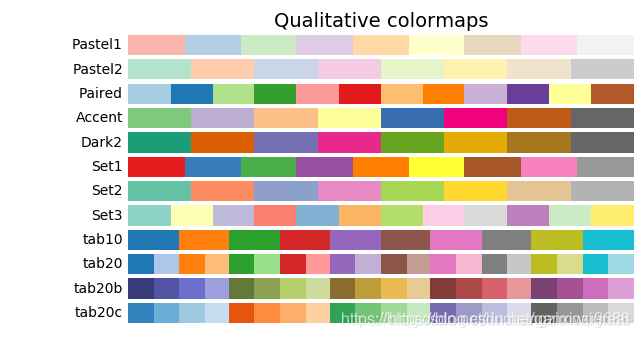

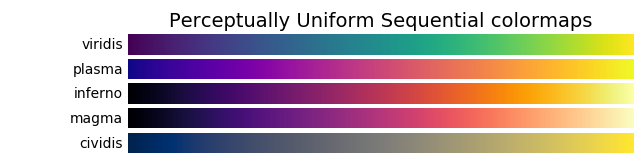

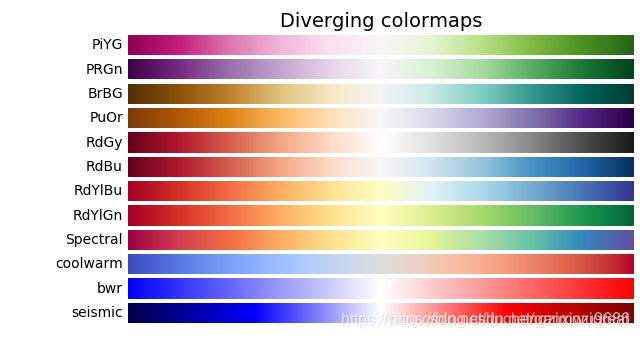

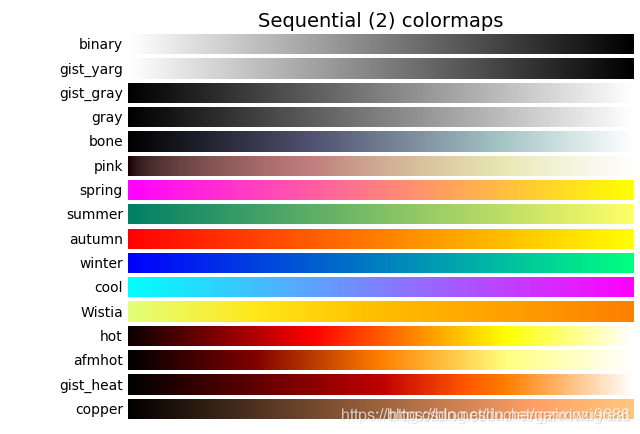

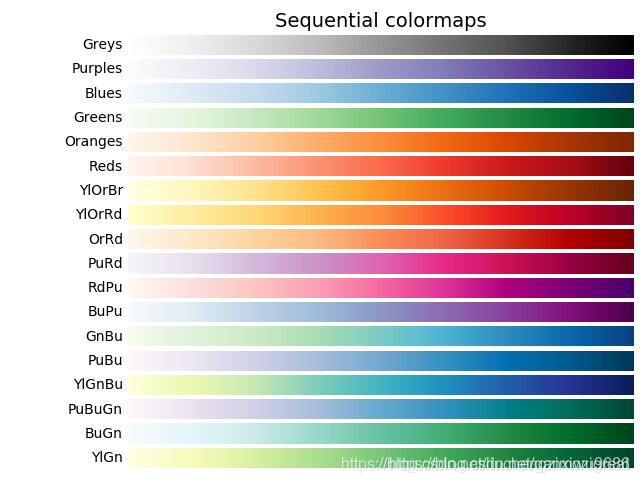

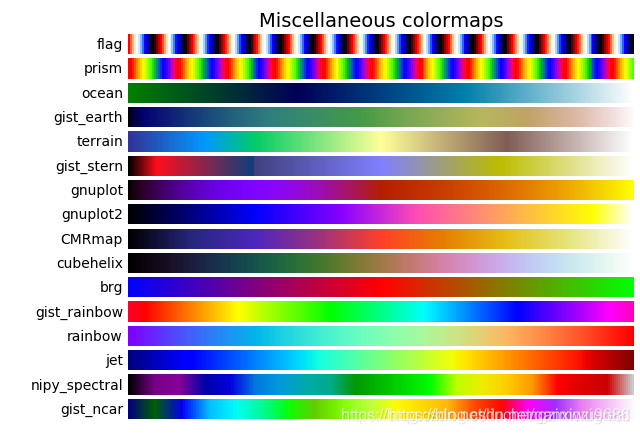

可以通過cmap修改,得到不同的顏色帶

python可視化 matplotlib畫圖使用colorbar工具自定義顏色

python可視化 matplotlib畫圖使用colorbar工具自定義顏色

python可視化 matplotlib畫圖使用colorbar工具自定義顏色

python可視化 matplotlib畫圖使用colorbar工具自定義顏色

python可視化 matplotlib畫圖使用colorbar工具自定義顏色

python可視化 matplotlib畫圖使用colorbar工具自定義顏色

最終可以看到結果如下圖:

python可視化 matplotlib畫圖使用colorbar工具自定義顏色

到此這篇關于python可視化 matplotlib畫圖使用colorbar工具自定義顏色的文章就介紹到這了,更多相關python colorbar自定義顏色內容請搜索好吧啦網以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持好吧啦網!
